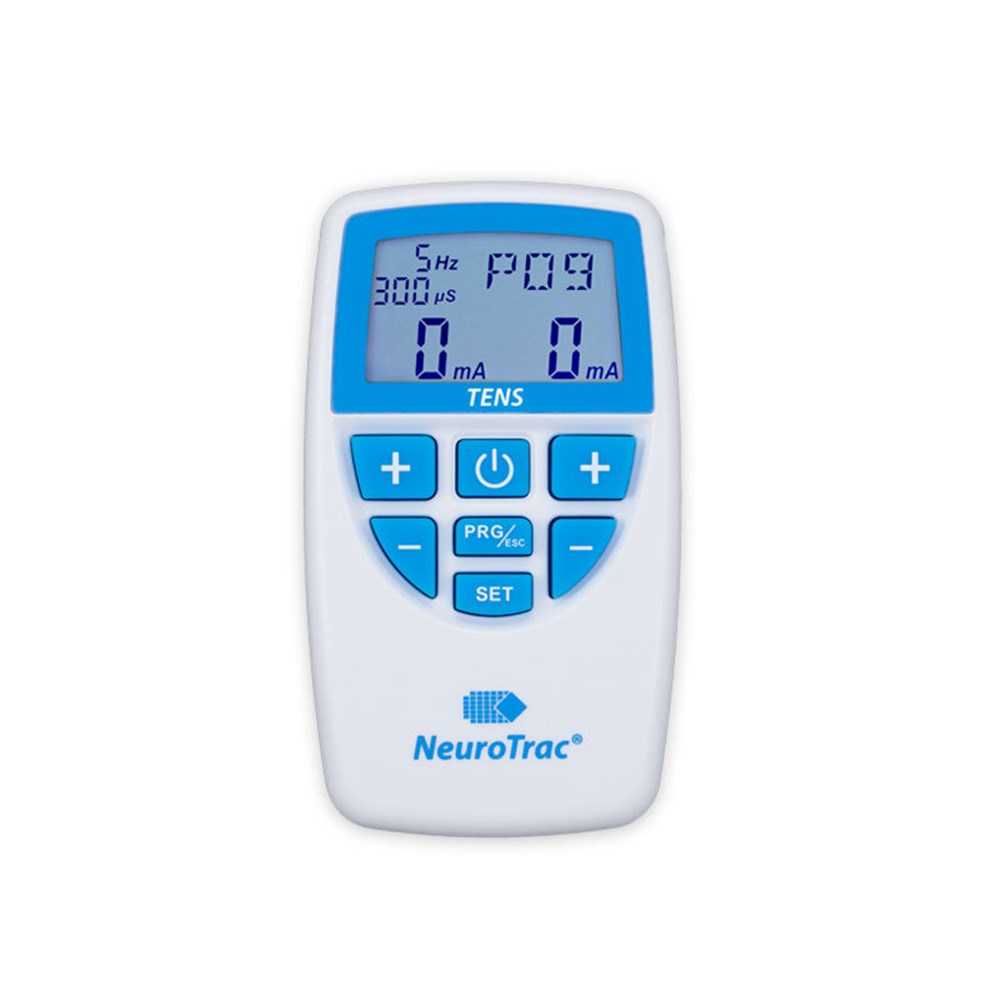

The Neurotrac TENS is a basic digital dual channel TENS machine for pain relief.
Features:
- Simple and practical for wide range of pain management techniques
- Modalities: high and low frequency, burst, continuous and modulated. 11 preset programs, 3 customisable TENS programmes
- Lock mode function to measure and record the home compliance (mA and time used)
- Clear bright backlight LCD allows the display to be read more easily in low light or dark conditions
- Keypad with bigger buttons for ease of use
- Compact, light and reliable
Technical Data:
- Dual channel: individually isolated circuits
- Amplitude: 0 80 mA into 500 Ohm load; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load the maximum will be limited to 65 mA
- Type: constant current, maximum output voltage 180 Volts +10 / -30 Volts
- Waveform: asymmetrical, rectangular bi-phasic with zero DC current
- Selectable pulse width: 50mS -300mS [2% accuracy]
- Pulse rate selection: in the continuous mode 2 Hz 200 Hz [2% accuracy]
- Mode: continuous, burst or modulated
- Burst mode: bursts of 9 pulses [200 mS] at 150 Hz, repeating twice every second
- Modulation mode: 6-second cycle of concurrent width modulation and pulse repetition rate modulation. Width starting at 200 mS and decreasing exponentially to 100 mS in three seconds and then returning back to 200 mS in the next three seconds. Rate starting at 100 Hz, decreasing exponentially to 65 Hz and then returning to 100 Hz
- Time duration of the treatment selectable: 1 minute to 12 hours
- Low battery indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second
- If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on
- Open electrode detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero
Physical dimensions:
119.2 x 69 x 28.7mm
Weight:
0.07kg without battery, 0.1kg with battery
Environmental conditions for use:
+5 to +40 degrees centigrade. 15-93% humidity
Environmental conditions for storage & transport:
-25 to +70 degrees centigrade. 15-93% humidity
